Beach Fence / Shark FenceBEACHFENCE

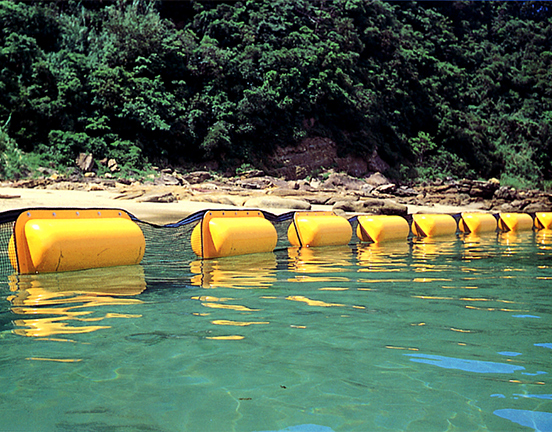

Beach Fence

In recent years, the beautification of the bathing beaches(especially private beaches) have become an important issue.
Beach Fence is the product that cutting off jellyfish and dust influx from the outer beach to beautify the beach, it can be used at the boundary of the swimming area. It is ideal for dust proof and removal.
You can also enhance it by using the related facilities, such as a floating docks for mooring boats.
Associated with environmental beautification, we have product of own designed float(Patent pending).

The catalog PDF download >>

製品の概要

Purpose

  1. It can prevent the inflow of dust and driftwood, seaweed, jellyfish.
  2. It can be used at the boundary of the swimming area.
  3. It is effective to beautify the natural environment.

Structure

Beach fence is composed of four elements, prevention net, It’s float(to make it floating on the water), Stretched rope to ensure the strength of the entire consolidated net and float, and anchor fixed to the body.

Float 1. φ150(Single float format proof membrane)
2. φ300(Single float format proof membrane)
3. φ300(Floating cover made of FRP)
Stretched rope dimension: 1.8 x 50㎜
material: Polyester belt
Net dimension: (mesh size)10~50㎜
material: Polyethylene 400D
Anchor Steel anchors and concrete anchors
(Determined by the design calculation)

The above is a standard. The field conditions may change materials and standards.

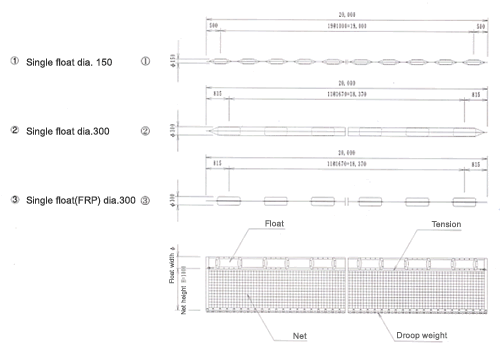

Structural drawing

Shark Fence

The damage caused by the invasion of the shark to the fishing grounds, and beaches is a growing number in Japan. Shark fence is a product that prevents the shark invading , for the purpose of protecting human life.

製品の概要

Purpose

  1. To prevent the intrusion of shark.
  2. To be effective in protecting human life.

Structure

Shark fence is composed of four elements,prevention net,Float float on the water, Stretched rope to ensure the strength of the entire consolidated net and float, and Anchor fixed to the body.

Float dimension: φ600
body material: Expanded polystyrene
cover material: FRP
Stretched rope dimension: 3.0×100㎜
material: Polyester belt
Net dimension: (mesh size)10~50㎜(black)
material: Polyethylene 400D
Anchor Steel concrete anchors and anchor.
(Determined by the design calculation)

This is a standard specification. such as the material and Standards may be subject to change depending on the conditions.

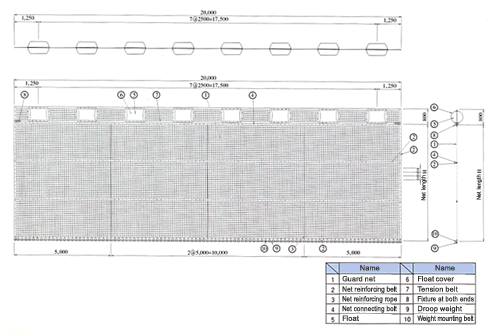

Structural drawing
